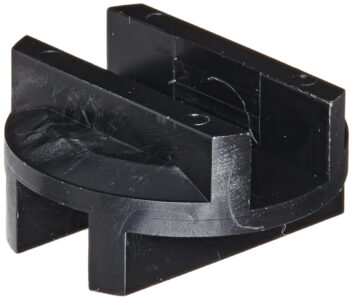

Ruland Oldham Coupling Disc OD21/33-AT

Ruland Oldham Coupling Disc OD21/33-AT

Specification: Item – Oldham Coupling Discs: Oldham Coupling Disc

Fits Hub Outside Dia.: 1.313″ / 33.3mm

Material – Discs: Acetal

Rated Torque: 70 in.-lb.

Max. RPM: 4500Torsional Stiffness (Deg./In.-Lbs.): 0.009

Max. Angular Misalignment: 0.5 Degrees

Max. Parallel Misalignment (In.): 0.008

Max. Axial Misalignment (In.): +/-.006

Max. Temp. Range (F): 150

Finish: Plain

Disc Type: Acetal

SKU: B007IAQ63K Category: Tags: , ,
Description

Ruland Oldham Coupling Disc OD21/33-AT

Specification: Item – Oldham Coupling Discs: Oldham Coupling Disc

Fits Hub Outside Dia.: 1.313″ / 33.3mm

Material – Discs: Acetal

Rated Torque: 70 in.-lb.

Max. RPM: 4500Torsional Stiffness (Deg./In.-Lbs.): 0.009

Max. Angular Misalignment: 0.5 Degrees

Max. Parallel Misalignment (In.): 0.008

Max. Axial Misalignment (In.): +/-.006

Max. Temp. Range (F): 150

Finish: Plain

Disc Type: Acetal

Additional information
Asin

B007IAQ63K
Manufacturer

‎RULAND MANUFACTURING
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Ruland Oldham Coupling Disc OD21/33-AT”
