Agriculture power transmission alternatives to replace Universal Joints, PTO couplings and jaw couplings.
Agriculture universal joints hostile work environment
Farming U Joints need to be tough, the water, dirt, mud and dust is tough on equipment, harsh working environments plus constant use means premature failure. Whether on a PTO, attachment or driveline the constant greasing (every 8 hours) means a constant maintenance item that has to be done and constantly checked for wear and replacement.
Debris and water kill universal joint bearings
Water, dust, dirt and debris all are present in the farming environment and that takes a toll on equipment, Power take off units, water pumps, tractor powertrain components are always working so these wear parts are the ones that go first
Old universal joint technology fails constantly even when maintained

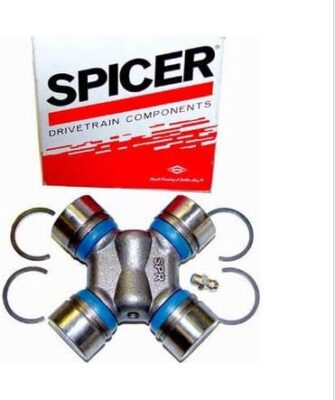

So lets compare what is available, and to date its been one product, the universal joint. The Dana (Spicer) Universal joint or “U joint” has been around for over 115 years. The universal joint has a bearing cross in its center which in modern terms means it has to be constantly lubricated or the T cross or propeller bearings (one at each cross point) will seize up and require replacement. Add to that any angles it is used at means the vibration increases at both speed and angle of use. The typical universal joint in a car requires balancing and its angle of usage is best under 8° the same applies with agricultural equipment.
A new power transmission coupling for agriculture with no internal components to maintain or replace
Twin Spring’s Coupling is different in that it has no center cross with bearings to allow it flex, that is handled by its dual spring design, add to that it has no internal bearings means it can run in hostile farm environments without constant maintenance. What this means to you is more flex no maintenance.
Not designed to work in harsh environments, the debris enters the couplings, seals of bearings leading to failure due to wear of the many internal components. This failure costs money, even with a maintenance program in place.
Lubricated and encased during the manufacturing process means those environmental contaminants cannot effect the Twin Spring Coupling.
Save time and money, no constant greasing or replacing bearings
No maintenance saves farmers time and that means money, as equipment needing to be repaired or maintained costs especially in planting and harvesting season
PTO Farming couplings
Attach Power Take Off’s (PTO) and work without the issue of being only able to use it within a few degrees or it failing.
Available in 6 spline, 20 spline, 21 spline PTO, 1/2″ to 1 3/4″ Shaft (with/without keyway) and Jaw Coupling L-090 to L-226. Whether PTO Universal joint or jaw coupling replacement, Twin Spring Coupling has the right coupling for you.
Agriculture couplings replaces.
Spicer – 5-443X, 5-3214X, 5-264X, 5-3215X, 5-3235X, 5-110X, 5-3233X, 5-554X, 5-103X, 5-3232X, 5-129X, 1240 series, 5-110X, 5-736X, 5-170X, 5-554X, 5-101X, 5-248X, 5-105X, 5-242X, 5-92X, 24-92X,1000SG.
Moog – 338, 237, 344, 838, 240, 880, 340, 437, 882, 341, 437G, 814, 1300, 436, 514G, 466, 995.
Neapco – 1-0170, 1200, 1-1875, 1-0675, 1-1275, 1-2075, 1-1475, 1800, 2200, N1000, 1-0221, 1-0005, L600, 1-1001, 2-2421, 1-0616, 1-0443, 1-0475, 2-0456, 1-0121, 2000, 1-0300, 1-0105, 1-0171.
Weasler – 200-0600, 200-8261, 200-8474, 200-0100, 200-8370, 200-1400, 14 series, 200-1000, 200-1200, 14R, L6W, 12RW, 200-1875, 200-7155, 200-7155, 12 series, 200-7676, 200-6154, 6 Series, 1000 Series, 7 Series, 3200-8204, 200-6580, 3010-6606-00, 3009-7606-00, 3009-6406-00, AW21 series, AB4 Series,
507-9518, 15160616, 3200-8202, 3010-7606-00, 3009-6206-00, 3002-7306-00, AW20 series, AB2 Series, AW11 Series, AB3 Series, 222-26141, 15161216, 107-20872, AW19 series, 3009-7106-00, AW10 Series, 212-26155, 15161016, 107-20561, 107-20872.
SKF – UJ338, UJ995, UJ861, UJ507, 2200 series, N1000, UJ880, UJ344AG, L600, 1200, UJ814, UJ811, 1800, UJ812, UJ341AG, UJ880, UJ813, UJ340, UJ964, UJ514G, UJ934, UJ1501, UJ840, UJ838.
Rockwell – CP101X, CP456X, L14N, 1FR, L12N, CP248X.
Bondioli and Pavesi – STF S2, S3, S4 series, Global G2, G3 series.
Walterscheid – G2100, G2200 ,G2300 ([email protected]), P300 ([email protected]), W300E, W200E, W100E.
Boston Gear – FC45 XFCA Poly, J200B, UJAS 10-10, UJAS 12-12, UJAS 14-14, UJAS 16-16, UJAS 18-18, UJNL 16-16, UJNL 18-18, UJNL 20-20, UJNL 22-22, UJNL 24-24.
SIT – GU7P, GU7E, GU7H, Trasco ES 75 red and green.
See more at Farm Equipment .
Available splines and sizes
|
PTO
|
540 RPM
|
1000 RPM
|
|
1′ – 1 3/8″ (24.5mm- 35mm) 6 teeth (6 Spline)
|
Series 1-4
|
Series 1-4
|
|
1/2′ – 2 1/4″ Keyway
|
Series 1-4
|
Series 1-4
|
|
1′ – 1 3/8″ (25.4mm-35mm) 20 teeth (20 spline)
|
Series 2-4
|
Series 2-4
|
|
1′ – 1 3/8″ (25.4mm-35mm) 21 teeth (21 spline)
|
Series 2-4
|
Series 2-4
|
