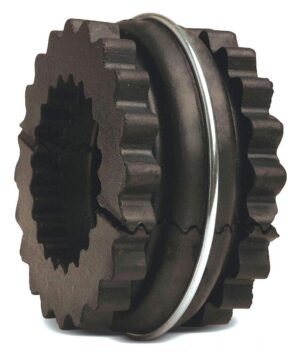

TB Woods 9E EPDM Sure-Flex Plus Rubber Sleeve .698672920551

TB Woods 9E EPDM Sure-Flex Plus Rubber Sleeve

TB Woods 9E EPDM Sure-Flex Plus Rubber Sleeve

Application: Motors, Pumps, Compressors, Blowers, Mixers and Conveyors

HP Rating @ 1200 RPM: 44.55

HP Rating @ 100 RPM: 3.71

Body Style: 9E

Width: 3.00″

Outside Dia. 6.00″

Insert Design: Two-Piece with Retaining Ring

Operating Temp.: -30 Degrees to 275 Degrees F

Rated Torque: 2340 in.-lb.

Item>: Sleeve Coupling Insert

Insert Material: EPDM Rubber

Max. RPM: 3750

HP Rating @ 3600 RPM: 133.66

HP Rating @ 1800 RPM: 66.83

Country of Origin (subject to change): United States

SKU: B0733BXKJT Categories: Shaft-Hub Locking Devices, Couplings, Collars & Universal Joiners, Flexible Couplings, Industrial, Multi-Flex Tags: 698672920551, TB Woods 9E EPDM Sure-Flex Plus Rubber Sleeve Brand: TB Woods

Description

TB Woods 9E EPDM Sure-Flex Plus Rubber Sleeve.

Coupling Sleeve – 9, E, Two Pieces with Ring Construction, EPDM Material, 3750 rpm

Specifications

Dimensions

Coupling Size Code 9
Max Angular Misalignment: 1 °
Max Parallel Misalignment: 0.025 in
Outside Diameter: 6.0000 in

Details

Color: Black
Coupling Component: Element
Coupling Type: Elastomeric
Horsepower @ 100 RPM: 3.7 hp
Manufacturer Catalog Number: 9E SLEEVE
Manufacturer Upc Number: 698672920551
Material: EPDM
Max HP @ 1750 RPM: 65 HP
Max HP @ 3500 RPM: 130 HP
Max Rpm: 3750 rpm
Operating Temperature Range: -30 to +275 °F
Product Type: Coupling Sleeves
Series: Sure-Flex Plus A
Sleeve Construction: Two Pieces with Ring
Sleeve Type Code: E
Stiffness: 6875 in·lb/rad
Torque Capacity: 2340 in
UPC : 698672920551

Additional information

Asin	B072B5L476
