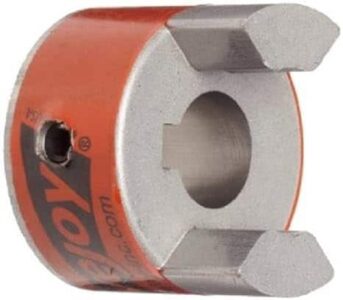

Lovejoy L070 Standard Jaw Coupling Hub 9/16 in Bore w 1/4 x 1/8 in Keyway.
Lovejoy 68514476284 L070 Standard Jaw Coupling Hub, Sintered Iron, Inch, 0.563″ Bore, 1.36″ OD, 0.25″ x 0.125″ Keyway.
Dimensional Data.
Bore Size | 9/16 in |
Coupling Size | L070 |
Keyway Size (W x D) | 1/4 x 1/8 in |
Length thru Bore | 0.750 in 19.05 mm |
Overall Length | 1.980 in 50.29 mm |
Outside Diameter | 1.36 in 34.54 mm |
Min. Bore (Dimensions ID1/ID2) | 0.250 in 6 mm |
Max. Bore (Dimensions ID1/ID2) | 0.750 in 19.00 mm |
Hub Length | 1.230 in 31.24 mm |
Dimension G | 0.480 in 12.19 mm |
Dimension SL | 0.380 in 9.65 mm |
Dimension T | 1/4-20 |
Cubic inches | 2.27501 in³ |
Performance Data
Nominal Torque | 43.20 in·lb |
Max. Speed | 14000.00 rpm |
Rated HP at 100 rpm | 0.07 hp |
Rated HP at 1,200 rpm | 0.84 hp |
Rated HP at 1,800 rpm | 1.23 hp |
Rated HP at 3,600 rpm | 2.52 hp |
