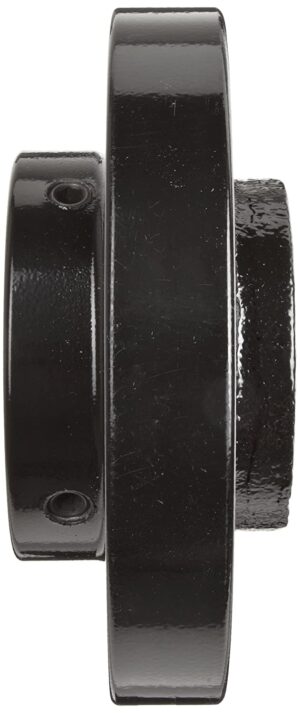

Lovejoy 68514436142 8S S-Flex Coupling Flange 1 1/2 in Bore w 3/8 x 3/16 in Kw.
Key Dimensions
Description | 8S-FLNG-1-1/2-3/8X3/16KW |
Coupling Size | 8S |
Type | Coupling Flange |
Material | Cast Iron |
Color | Gray |
Bore Type | Finished Bore |
Coupling Type | S-Flex |
Weight | 4.33 lb |
Dimensional Data
Bore Size | 1 1/2 in |
Thread (Dimension T) | 3/8-16 |
Keyway Size (W x D) | 3/8 x 3/16 in |
Outside Diameter | 5.450 in138.43 mm |
Max. Bore (Dimension ID) | 1.938 in |
Dimension FL | 0.880 in22.35 mm |
Dimension HD | 3.250 in82.55 mm |
Dimension L | 2.100 in53.34 mm |
Dimension P | 0.750 in19.05 mm |
Dimension SL | 0.380 in9.65 mm |
Cubic inches | 62.37525 in³ |
