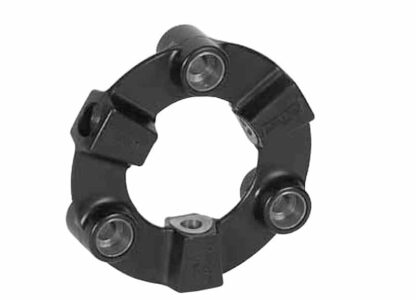

Lovejoy 68514428213 LF8X Torsional Coupling Base Element with Hardware Zytel

Brand	Lovejoy (Timken)
Component Type	Lovejoy Coupling Component
Material	Steel / Cast Iron
Nominal Torque	7960 in-lbs
Application	Lovejoy Coupling Assemblies For Industrial Power Transmissio

SKU: B004QWZH2E Categories: Couplings, Collars & Universal Joiners, Flexible Couplings, Industrial, Multi-Flex Tag: Lovejoy 68514428213 LF8X Torsional Coupling Base Element with Hardware Zytel Brand: Lovejoy

Description

Lovejoy 68514428213 LF8X Torsional Coupling Base Element with Hardware Zytel

Key Dimensions

Description	LF8X-ELE-ZY-W/HDWR
Coupling Size	LF8X
Coupling Type	Torsional
Material	Zytel®
Bore Type	Element w/ Hardware
Color	Black
Weight	0.60 lb

Dimensional Data

Thread (Dimension T)	M10
Length thru Bore	1.180 in29.97 mm
Cubic inches	28.56355 in³

Performance Data

Normal Temperature Range	-40 to 300 ºF
Nominal Torque	1060.00 in·lb120.00 N·m
Max. Torque	2480.00 in·lb280.00 N·m
Max. Speed	7000.00 rpm
Max. Angular Misalignment	1.00 º
Max. Parallel Misalignment	0.004 in0.10 mm
Dynamic Torsional Stiffness	46820.00 Nm/rad
Dynamic Torsional Stiffness	414370.00 in·lb/rad
Max. Axial Misalignment (End Float)	± 0.02 in± 0.5 mm

Torsional Element Specifications

Elements made of DuPont’s highly stress able Zytel® elastomeric compound have excellent chemical compatibility and corrosion resistance. The element composition is 3-times stiffer then Hytrel® elements. Zytel® elements exhibit less than 1° wind up at normal torque and zero backlash. Most suited for applications where heat, moisture, high torque / high speed, and corrosion resistance are critical factors in the coupling selection.

Operating Temperature Range: -40° to 300° F
Maximum Angular Misalignment: 1°

Features

Wide range of standard designs and materials
Application versatility
Shaft to shaft or flywheel to shaft designs
Designed to accommodate substantial shock loads, vibration, and misalignment
Low moment of inertia
Electrically insulating
No lubrication, maintenance free
Unique air-flow cooling design
Different element stiffness values allow for torsional tuning of applications with diesel engines
Economic design allows for cost effective solutions for torsional applications
Proven L-LOC spline-clamping hub virtually eliminates spline shaft profile wear and “fretting”
Oil, heat, and corrosion resistant elements (Hytrel®, Zytel®)
When used with S-bolts, the coupling can accommodate some end float
S-bolts accommodate applications requiring “blind” assembly
Model 6 unique spacer designs span gaps between equipment in excess of the normal equipment separation
Model 6 design available with bearings for high speeds and large amounts of equipment separation
