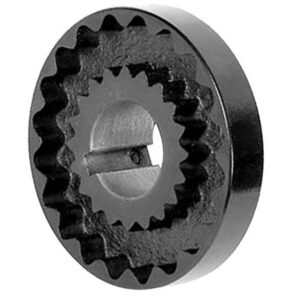

Lovejoy 5J S-Flex Coupling Flange Hub w Kw 68514436059
Key Dimensions
Description | 5J-FLNG-3/4-3/16X3/32KW |
Coupling Size | 5J |
Type | Coupling Flange |
Material | Cast Iron |
Color | Gray |
Bore Type | Finished Bore |
Coupling Type | S-Flex |
Weight | 1.13 lb |
Dimensional Data
Bore Size | 3/4 in |
Thread (Dimension T) | 1/4-20 |
Keyway Size (W x D) | 3/16 x 3/32 in |
Outside Diameter | 3.250 in82.55 mm |
Max. Bore | 1.125 in |
Dimension FL | 0.590 in14.99 mm |
Dimension HD | 1.880 in47.75 mm |
Dimension L | 1.060 in26.92 mm |
Dimension P | 0.470 in11.94 mm |
Dimension SL | 0.290 in7.37 mm |
Cubic inches | 11.19625 in³ |
