Lovejoy Size D3 Universal Joint Upper Type Boots And Ties.
Lovejoy 68514449967, Set of D Type Upper Boots & Ties.
Dimensional Data.
Dimension J1 | 1.090 in 27.69 mm |
Height | 0.620 in |
Depth | 1.060 in |
Width | 0.620 in |
Cubic inches | 0.40746 in³ |
Dimensional Data of Related Coupling
Size | D3 |
Outside Diameter | 0.620 in |
Overall Length | 1.060 in |
Performance Data of Related Coupling
Operating Temperature Range | -30 to 212 ºF |
Max. Speed | 1750.00 rpm |
Lovejoy Size D3 Universal Joint Upper Type Boots And Ties.
These Lovejoy lower type boots fit the D Series of Lovejoy universal joints and protect the joint from dirt and contaminants and retain lubrication for up to five times longer joint life. They are made of neoprene synthetic rubber for resistance to oil, moisture, and heat, and they have an operating temperature ranging from -30 to 212 degrees F. These are large diameter boot for applications without space limitations.

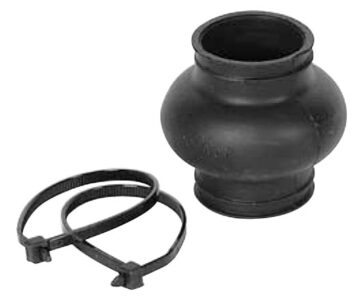

Simple installation. Includes 2 boots and 4 ties for attachment to the universal joint.
Universal joints (also called U-joints, universal couplings, Cardan joints, Hooke’s joints, or Hardy-Spicer joints) are used to transmit motion and rotational power, or torque, between two shafts that are offset at an angle. Most universal joints consist of two yokes and a middle assembly; the hub end of each yoke attaches to a shaft while the yoke ears attach to and pivot around the middle assembly to accommodate shaft misalignment.
The type of middle assembly determines its usage—pin and block joints are suitable for transmitting high torque, needle bearing joints are used to handle high rotational speeds, and ball and socket joints are used in applications requiring low backlash (play between moving parts). The body of the universal joint may include a single joint to accommodate only angular misalignments between shafts, or two joints to accommodate both angular and parallel misalignments.
Available in a variety of materials and configurations, universal joints are used in applications including motor vehicles, conveyors, medical and optical devices, forestry and mining equipment, robotics and space exploration, and aeronautics, among others. Lovejoy manufactures flexible couplings, universal joints, variable speed drives, and other transmission and mechanical power products.
The company, founded in 1900, is headquartered in Downers Grove, IL.
