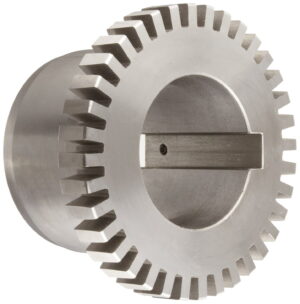

Lovejoy 69790406849 1110 Hub 3535 TL Front Mount USA Standard

Lovejoy 69790406849 Aluminum/Alloy Steel 1110 Hub, 3535 TL Front Mount USA Standard, 3.625″ Length Through Bore, 6.310″ OD.

Lovejoy® Grid Coupling Size	1110
Set Screw Style Coupling Size (Dimension T)	Taper-Lock 3535 UNC
Height	6.310 in
Width	6.310 in
Length thru Bore	3.625 in 92.00 mm
Dimension HD	6.310 in 160.27 mm
Spline Size	13T Spline 8/16 DP
Min. Bore (Dimensions ID1/ID2)	1.625 in 41.28 mm
Max. Bore (Dimensions ID1/ID2)	4.500 in 114.30 mm
Max. Bore Bushing	3.500 in 88.90 mm
Max. Parallel Misalignment at Installation (Dimension P)	0.0100 in
Max. Parallel Misalignment during Operation (Dimension P)	0.020 in
Distance between Shaft Ends (Dimension G) – Normal Gap	0.177 in 4.50 mm
Taper-Lock Bushing	3535
Thread	UNC
Cubic inches	144.33336 in³

Bushing Max. Torque	44800.00 in·lb
Coupling Rated Torque	82500.00 in·lb
Max. Angular Misalignment at Installation (X-Y)	0.009 in
Max. Angular Misalignment during Operation (X-Y)	0.035 in

Falk™ Steelflex® Horizontal Cover Style Coupling Part Number	1110T10
Morse® / Browning® Grid-Flex Horizontal Cover Style Coupling Part Number	GF2110H
Dodge® Grid-Lign® Horizontal Cover Style Coupling Part Number	1110T10
Kop-Flex® / Kop-Grid® Horizontal Cover Style Coupling Part Number	1110H
Falk™ Steelflex® Vertical Cover Style Coupling Part Number	1110T20
Morse® / Browning® Grid-Flex Vertical Cover Style Coupling Part Number	GF2110V
Dodge® Grid-Lign® Vertical Cover Style Coupling Part Number	1110T20
Kop-Flex® / Kop-Grid® Vertical Cover Style Coupling Part Number	1110V
