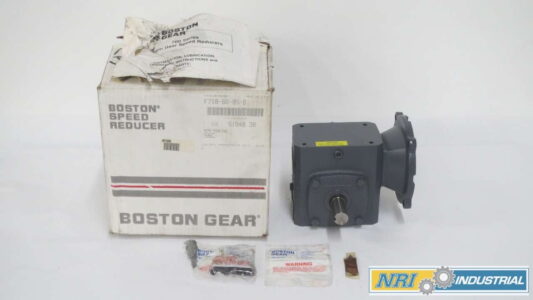

Boston Gear F718-60-B5-G – 51948
Specifications
Dimensions
- Case Size 718
- Center Distance 1.75 in
- Housing Dimensions 5-1/2 x 3.69 x 5-3/4 in
- Housing Height 5.75 in
- Housing Length 5.00 in
- Housing Width 3.69 in
- Input Size 0.6250 in
- Manufacturer Reducer Size 718
- Maximum Output RPM 29.200 @ 1750 rpm input
- Maximum Output Torque 530 in-lbs @ 100 rpm
- NEMA / IEC Frame Size 56C
- Nominal Ratio 60:1
- Output Size 0.8750 in
- Ratio 60:1
- Weight 23.00 lbs
Details
- Bushing Kit Kit B5
- Case IncludedYes
- Gearbox Component Type Gearbox
- Housing MaterialCast Iron
- Input TypeC-Face Quill
- Manufacturer Catalog Number 51948Manufacturer Upc Number 781711519486
- Max Input Horsepower 0.350 hp @ 1750 rpm
- Mounting Type No Base
- Output Direction Left Hand
- Output Type Solid
- Overhung Load Capacity 500 lb
- Reduction Single
- Series 700
- Standards Met AGMA
- UPC_NO781711519486
