Boston Gear F724-10-B7-G – 51984
F724-10-B7-G

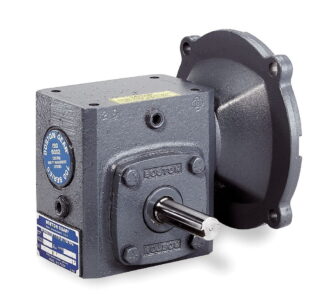

700 Series 10:1 Ratio G Assembly Single Reduction Worm Gear Reducer Without Base
Item #101809818
- 3 Input Motor hp
- 700 Series
- 2.38 in Center Distance
- Single Reduction
description
- Our standard 700 Series – the heart of Boston Gear’s speed reducer product line – has been serving many industries reliably for over 40 years. Its proven modular design has set the industry standard for performance and is the most imitated product in today’s worm gear speed reducer market.
features
- Large oil reservoir provides efficient heat dissipation and lubrication for longer life
- Housing is straddle milled top and bottom for precise alignment
- Internal baffles ensure positive, leak-free venting
- Rugged housing fabricated of fine-grained cast iron for maximum strength and greater precision during worm and gear alignment
- Bronze worm gear is straddle mounted between heavy-duty tapered roller bearings to increase thrust and load capacities on size 713 to 760
- High strength steel output shaft ensures capacity for high torque
- Pipe plugs allow easy fill, level and drain in any mounting position
- Super finished oil seal diameters on both input and output shafts extend seal life
caution
- Must be filled to the proper level with the recommended lubricant for your application before operation
Input Configuration C-Face Quilled Motor HP 2 hp Motor Frame Size B7140TC180C Thermal Input Horsepower @ 1750 RPM N/A Bolt Centers w/ Std. Base Kit (in) 7 1/16 x 4 7/8 Ratio 10:1 Output Configuration Left Output Use With 724 Box Length 6 3/8 in Box Height 6 15/16 in Output RPM @ 1750 rpm Input 175 rpm Reduction Type Single Fan Cooled No Standard AGMA Service Class I Base to Shaft Center Height w/High Vert. Base Kit 5 1/4 in Base to Shaft Center Height w/Low Vert. Base Kit 3.38 in Output Bore Shaft Dia. 1.125 in Center Distance 2.375 in Washdown Duty No Output (Shaft or Bore) Size 1 1/8 in Media Mapping Output G Frame Size 140TC, 180C Bore Code B7 Output Speed 175 rpm Bolt Center Length x Bolt Center Width 5 in x 2 7/8 in Output Shaft Projection Solid Left Output Torque Out @ 1750 rpm 1069 in lb Output Torque @ RPM 1025 in lb @ 1150 rpm, 1069 in lb @ 1750 rpm Rated Efficiency 93% Lubrication None Bolt Centers w/ Vertical “J” Base Kit (in) 9.19 x 2.88 Input HP @ RPM 2.09 hp @ 1150 rpm, 3.18 hp @ 1750 rpm Max. Overhung Load @ RPM 900 lb/in @ 1150 rpm, 900 lb/in @ 1750 rpm Bolt Centers w/ Vertical Base Kits (in) 8.94 x 4.88 Input (Shaft or Bore) Size 7/8 in Max. Overhung Load @ 1750 rpm 900 lb/in Base to Centerline of Output Shaft 2 1/2 in Box Width 5 7/16 in Input Motor HP 3 Base to Shaft Center Height w/Std. Base Kit 5.19 in Frame 140TC, 180C Max. Thrust Load @ 1150 rpm 900 lb/in Family Name F Series 700 Housing Material Cast Iron Torque Out @ 1150 rpm 1025 in lb Output Torque 1069 lb-in Output Torque Rating Range [Max] 1499 lb-in, 159 Nm Material Cast Iron, Standard Paint Shaft Assembly Code G Motor Application General Purpose Max. Input HP @ 100 rpm 0.27 hp Base to Shaft Center Height w/Vert. “J” Base Kit 4.06 in Worm Position Universal Media Mapping Style F Max. Thrust Load @ RPM 900 lb/in @ 1150 rpm, 900 lb/in @ 1750 rpm HP @ RPM 3 hp @ 1800 rpm Output Shaft Solid Input Power Rating 3.18 hp, 2.371 kW Bolt Center 5 in x 2 7/8 in Base Mounting Attachment No Base Output Torque Rating Range [Min] 1000 lb-in, 110 Nm Output RPM @ Input RPM 175 rpm @ 1750 rpm Base to Centerline of Input Shaft 4 7/8 in Style Right Angle Center Distance Code 724 Weight 30.1 LB EAN or UPC 781711519844
