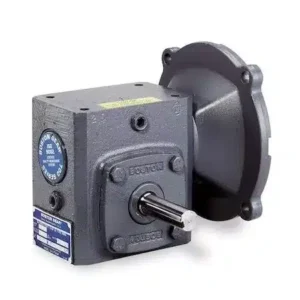

Boston Gear F715-50-B5-G WORM SPEED REDUCER
Boston Gear Speed Reducer, C-Face, 56C, 50:1
Specifications
| Max. Thrust Load @ 1150 rpm | 400 lb/in |
| Use With | 715 |
| Base to Shaft Center Height w/High Vert. Base Kit | 4.38 in |
| Input Motor HP | 0.33 |
| Base to Centerline of Output Shaft | 1.91 in |
| Frame | 56C |
| Motor HP | 0.25 hp |
| Torque Out @ 1150 rpm | 360 in lb |
| Max. Input HP @ 100 rpm | 0.027 hp |
| Motor Application | Washdown Duty |
| Input Power Rating | 0.35 hp, 0.261 kW |
| Input (Shaft or Bore) Size | 5/8 in |
| Fan Cooled | No |
| Center Distance | 1.54 in |
| HP @ RPM | 0.1666667 hp @ 1200 rpm, 0.25 hp @ 1800 rpm |
| Media Mapping Output | G |
| Media Mapping Style | F |
| Motor Frame Size | B556C |
| Bolt Centers w/ Vertical Base Kits (in) | 6.97 x 4.00 |
| Output Torque @ RPM | 360 in lb @ 1150 rpm, 429 in lb @ 1750 rpm |
| Output Bore Shaft Dia. | 0.75 in |
| Bolt Centers w/ Std. Base Kit (in) | 5 1/4 x 4 5/16 |
| Base Mounting Attachment | No Base |
| Output RPM @ Input RPM | 35 rpm @ 1750 rpm |
| Base to Shaft Center Height w/Low Vert. Base Kit | 3 in |
| Shaft Assembly Code | G |
| Input Configuration | C-Face Quilled |
| Base to Centerline of Input Shaft | 3.4375 in |
| Base to Shaft Center Height w/Vert. “J” Base Kit | 3.5 in |
| Max. Overhung Load @ 1750 rpm | 300 lb/in |
| Washdown Duty | Yes |
| Rated Efficiency | 68% |
| Max. Thrust Load @ RPM | 400 lb/in @ 1150 rpm, 400 lb/in @ 1750 rpm |
| Housing Material | Cast Iron¦White Epoxy Coating |
| Standard | AGMA Service Class I |
| Bolt Center | 4 3/16 in x 2 3/4 in |
| Reduction Type | Single |
| Output Speed | 35 rpm |
| Base | No |
| Input HP @ RPM | 0.18 hp @ 1150 rpm, 0.35 hp @ 1750 rpm |
| Output (Shaft or Bore) Size | 3/4 in |
| Series | 700 |
| Frame Size | 56C |
| Box Length | 5 1/8 in |
| Center Distance Code | 715 |
| Bolt Centers w/ Vertical “J” Base Kit (in) | 7.25 x 2.50 |
| Torque Out @ 1750 rpm | 429 in lb |
| Box Height | 5 3/8 in |
| Output Torque Rating Range [Min] | 300 lb-in, 35 Nm |
| Output Shaft | Solid |
| Max. Overhung Load @ RPM | 300 lb/in @ 1150 rpm, 300 lb/in @ 1750 rpm |
| Lubrication | None |
| Output RPM @ 1750 rpm Input | 35 rpm |
| Box Width | 5 1/16 in |
| Thermal Input Horsepower @ 1750 RPM | N/A |
| Family Name | F |
| Output Torque Rating Range [Max] | 499 lb-in, 59 Nm |
| Style | Right Angle |
| Output Torque | 429 lb-in |
| Output Configuration | Left Output |
| Base to Shaft Center Height w/Std. Base Kit | 4.06 in |
| Bore Code | B5 |
| Ratio | 50:1 |
| Output Shaft Projection | Solid Left Output |
| Material | Cast Iron, Standard Paint |
| Worm Position | Universal |
| Weight | 17.1 LB |
| EAN or UPC | 781711519189 |
