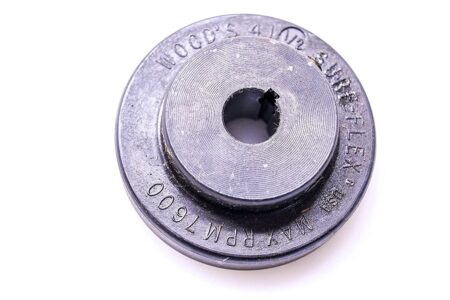

TB WOODS 4J12 Sleeve Coupling Flange

TB Wood’s® Sure-Flex® Plus 4J12 Bore-To-Size Type J Sleeve Coupling Flange, 04 Coupling, 1/2 in Bore Dia, 55/64 in Length Through Bore, 1-5/8 in Hub Dia, Sintered Carbon Steel.

Type J flanges sizes 3, 4 and 5 are manufactured of sintered carbon steel. The powdered metal manufacturing process provides high dimensional accuracy and uniform material properties for high strength. Size 6 is made of high strength cast iron. Flanges are bored-to-size for a slip fit on standard shafts. The outside face of the flange is precision machined, allowing the surface to be used to align the coupling without special tools.

TB Wood’s® Sure-Flex® Plus Sleeve Coupling Flange, Bore-To-Size Type J, 04 Coupling, 1/2 in Bore Dia, 1-5/8 in Hub Dia, 27/64 in Hub Length, 1/8 x 1/16 in Keyway, 7600 rpm Maximum, 55/64 in Length Through Bore, 1/4-20 UNC x 1/2 in L Setscrew Screw, Sintered Carbon Steel

FEATURES
