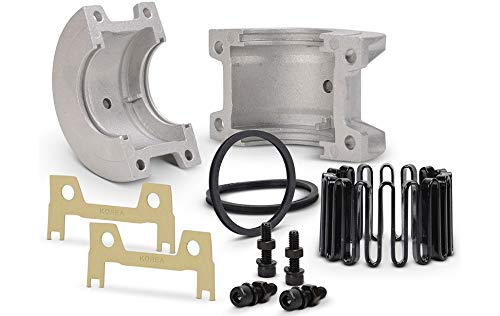

TB Woods 1120T20 Vertical Cover Kit for G-Flex Couplings
Model: 1120T20CK
TB Wood’s Taper Grid Coupling is the industry standard, state-of-the-art design from TB Wood’s and Bibby Turboflex, the original grid coupling manufacturer. The G-Flex 1000 / Bibby 2000 Series is an all-metal coupling that provides positive protection against the damaging effects of shock loads and vibration. Aluminum horizontal cover (T10), and all-steel vertical cover (T20) designs are available. G-Flex tapered grid couplings are an excellent choice where torsional flexibility and vibration damping are primary concerns.
Specifications
Product Family: T20CK
Part Group: Vertical Cover Kit
Coupling Size: 1120
Material Type: Steel cover; various
Torque Rating: 121,255 in-lbs
Max RPM: 2700
F Dimension: 9.69 in
H Dimension: 0.63 in
M Dimension: 5.63 in
Max Bore: 5.00 in
Coupling WR²: 1709 lb/ft²
Cover Outside Diameter (A): 12.56 in
Coupling Overall Length (B): 12.01 in
Cover Width (J): 2.91 in
Gap: 0.25 in
Coupling Weight: 167.0 lbs
Weight: 16 lbs
