Spicer 3-4-613-1 End Yoke
| Brand | Spicer |
| Series | 1350 |
| Invoice | END YOKE |

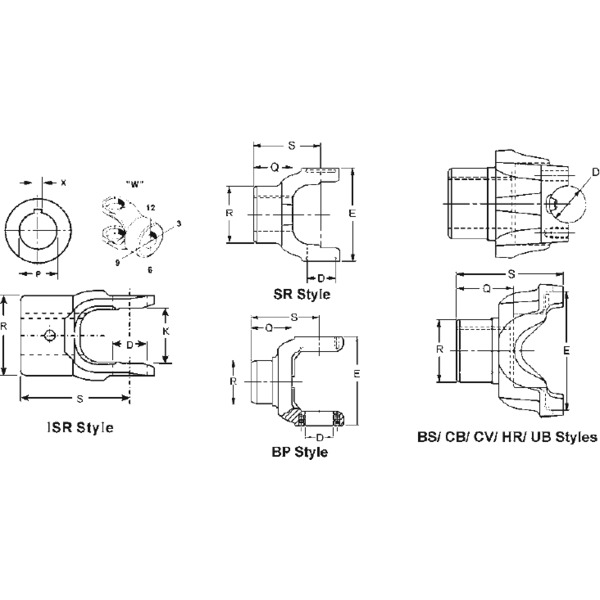

| Yoke Style | BS |
| Hub Diameter R | 2.250 |
| C/L To End Hub S | 3.031 |
| Type | Straight Round Hole |
| Outside Yoke Dimension (In) E | 3.625 |
| Yoke Bearing Dimension (In) D | 1.188 |
| Involute Spline | N |
| Hole Diameter (In) P | 1.375 |
| Sae Keyway Width (In) X | 0.312 |
| Set Screw Hole Diameter (In) | 0.375 |
| Keyway Location W | 12 |
| Set Screw Location W | 6 |
| VMRS | 024001003 |
| Length Thru Hole Q | 1.500 |
| Material | Steel |
| Joint Angle #1 | 22 |
| Hole Diameter – Max | 1.376 |
| Hole Diameter – Min | 1.375 |
| Keyway Width – Max | 0.3155 |
| Keyway Width – Min | 0.3135 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 2.2 LB |
| Country of Origin |
United States
|
Automotive Yokes
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer products that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
