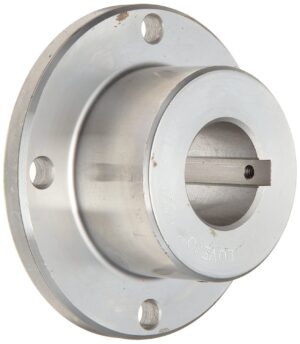

Lovejoy 69790406539 1070 Grid Spacer Coupling Shaft Hub 2 1/4 In Bore w 1/2 x 1/14 In Kw.
Key Dimensions
Description | 1070-SHAFT HUB-2-1/8-1/2X1/4KW |
Type | Grid Coupling |
Hub Material | 1045 Steel |
Style | Bored |
Color | Gray/Metallic |
Bore Type | Finished Bore and Keyway |
Weight | 11.16 lb |
Dimensional Data
Bore Size | 2 1/8 in |
Lovejoy® Grid Coupling Size | 1070 |
Set Screw Style Coupling Size (Dimension T) | 1/4-20 |
Keyway Size (W x D) | 1/2 x 1/4 in |
Height | 6.000 in |
Length thru Bore | 0.236 in |
Width | 6.000 in |
Length thru Bore | 3.120 in79.25 mm |
Min. Bore (Dimensions ID1/ID2) | Solid |
Max. Bore (Dimensions ID1/ID2) | 3.13 in79.50 mm |
Dimension FD | 6.00 in152.40 mm |
Dimension HD | 4.310 in109.47 mm |
Cubic inches | 112.31978 in³ |
Coupling Part Numbers
Falk™ Steelflex® Horizontal Cover Style Coupling Part Number | 1070T10 |
Morse® / Browning® Grid-Flex Horizontal Cover Style Coupling Part Number | GF2070H |
Dodge® Grid-Lign® Horizontal Cover Style Coupling Part Number | 1070T10 |
Kop-Flex® / Kop-Grid® Horizontal Cover Style Coupling Part Number | 1070H |
Falk™ Steelflex® Vertical Cover Style Coupling Part Number | 1070T20 |
Morse® / Browning® Grid-Flex Vertical Cover Style Coupling Part Number | GF2070V |
Dodge® Grid-Lign® Vertical Cover Style Coupling Part Number | 1070T20 |
Kop-Flex® / Kop-Grid® Vertical Cover Style Coupling Part Number | 1070V |
