Lovejoy U-50S Shaft-to-Shaft Uniflex Coupling 3/8 In Bore BE No Kw

Specifications

Description	U50S CPLG 3/8X3/8 N/KW BE
Hub Style	Short
Type	Shaft-to-Shaft
Material	Steel
Weight	0.30 lb
Weight (Complete Coupling w/ Max. Bores)	0.36 lb
Color	Gray/Metallic
Bore Type	Finished Bore

SKU: B004S2T3SQ Categories: Couplings, Couplings, Collars & Universal Joiners Tags: coupling, Industrial, lovejoy, spring coupling

Description

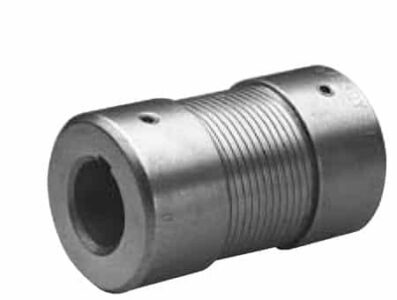

Lovejoy U-50S Shaft-to-Shaft Uniflex Coupling 3/8 In Bore BE No Kw

68514441950, U Type without Keyway, Short Version – Inch (Imperial) Bores

Dimensional Data

Bore Size	3/8 x 3/8 in
Hub Size	U50S
Set Screw Thread Size (Dimension T)	1/4-20
Keyway Size (W x D)	No Keyway
Dimension HD	1.040 in 26.42 mm
Overall Length	1.820 in 46.23 mm
Pin Location (Dimension SL)	0.310 in
Length thru Bore	0.500 in 12.70 mm
Min. Bore (Dimensions ID1/ID2)	0.313 in 8.00 mm
Max. Bore (Dimensions ID1/ID2)	0.500 in 12.70 mm
Bore Dia. [Max]	0.500 in 13.00 mm
Cubic inches	1.96851 in³

Performance Data

Operating Temperature Range	-40 to 250 ºF
Max. Torque	82 in·lb
Max. Speed	30000.00 rpm
Axial Misalignment (∆ Ka)	0.010 in 0.25 mm
Max. Parallel Misalignment	0.014 in 0.36 mm
Wind-Up Angle at Nominal Torque	1.05 º
Wind-Up Angle at Max. Torque	3.00 º
Rated HP at 100 rpm	0.13 hp
# of Set Screws Required per Hub	1

Coupling Design

Flexible Spring Type Coupling with Exclusive Triple Wound Spring Design

The Uniflex Coupling is an all steel, single piece coupling that solves a variety of application concerns including: high misalignment, space limitations, high temperature, and exceptionally low backlash/windup. The unique flexing center of the Uniflex consists of three opposingly wound square wire springs for forward or reverse operation. Two steel hubs are then brazed to the steel spring pack to create a durable one-piece flexible coupling.

Notes

Total backlash is approximately 1/3 of windup at maximum torque – consult Lovejoy Engineering for more information.
OAL Tolerance: + 1/8 inch.

Lovejoy U-50S Shaft-to-Shaft Uniflex Coupling 3/8 In Bore BE No Kw

Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other.

Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts.

Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another.

Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.

Lovejoy manufactures flexible couplings, universal joints, variable speed drives, and other transmission and mechanical power products.

The company, founded in 1900, is headquartered in Downers Grove, IL.

Lovejoy U-50S Shaft-to-Shaft Uniflex Coupling 3/8 In Bore BE No Kw
