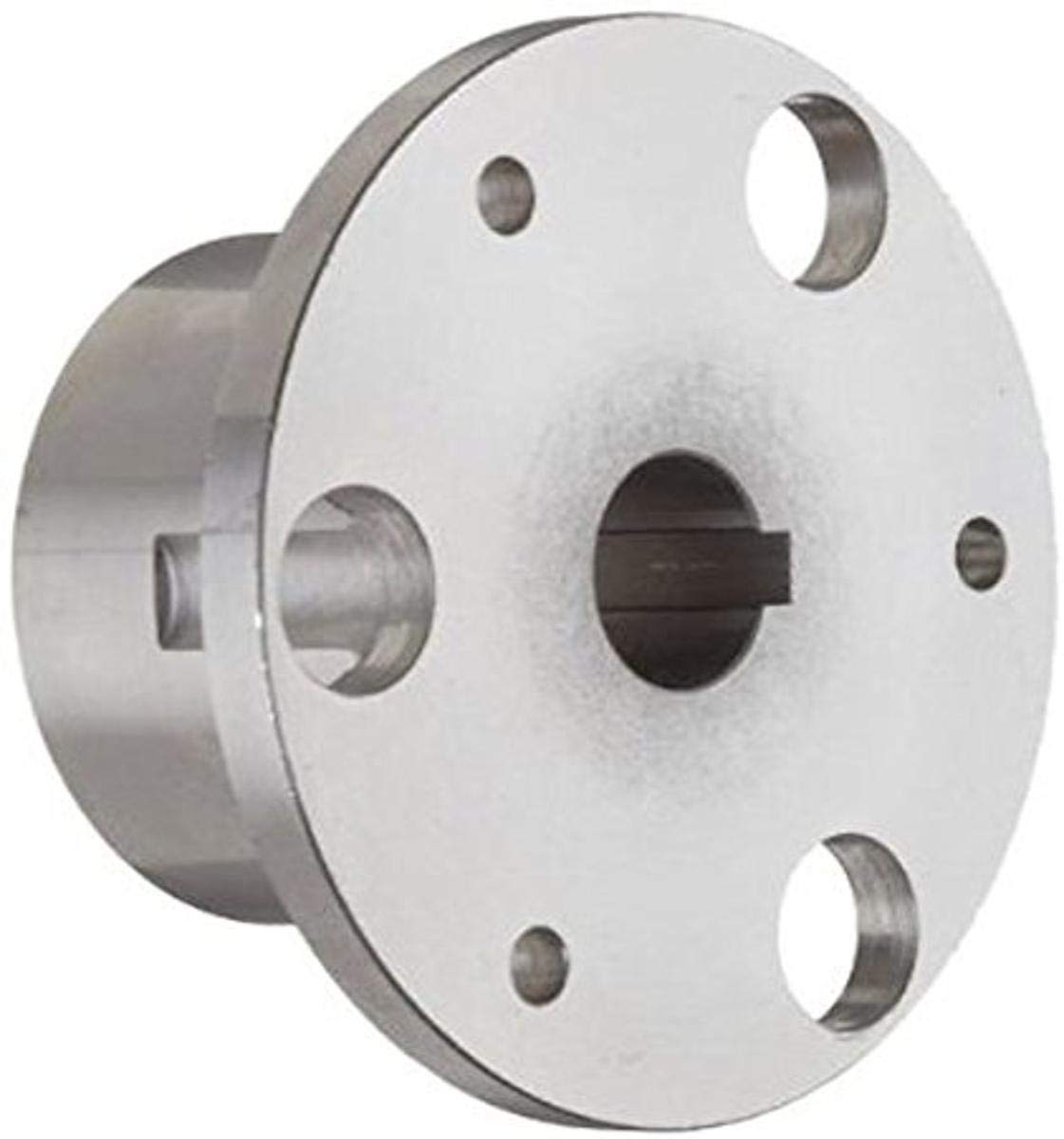

Lovejoy SXC302-6 Hub Rough Stock Bore.
Lovejoy 69790492031 SXC302-6 Hub, Rough Stock Bore, 5.32″ Length Through Bore.
Dimensional Data.
Size | 302-6 |
Set Screw Style Coupling Size (Dimension T) | No Setscrew |
Length thru Bore | 5.320 in 135.13 mm |
Overall Length | 10.990 in 279.00 mm |
Max. Bore (Dimensions ID1/ID2) | 4.630 in 115.00 mm |
Dimension BR | 4.530 in 115.00 mm |
Dimension FD | 11.890 in 302.00 mm |
Dimension FW | 0.870 in 22.00 mm |
Dimension HD | 6.500 in 165.00 mm |
Dimension HH | 0.550 in 14.00 mm |
Dimension PW | 0.960 in 24.38 mm |
Dimension S | 7.330 in 186.00 mm |
Distance between Shaft Ends (Dimension BSE) | 0.350 in 9.00 mm |
Cubic inches | 752.09957 in³ |
Performance Data
Nominal Torque | 177000 in·lb |
Max. Torque | 354000.00 in·lb |
Max. Speed (Unbalanced) | 2560.00 rpm |
Max. Speed (Balanced) | 6400.00 rpm |
Axial Misalignment (∆ Ka) | 0.224 in |
Max. Angular Misalignment | 1.00 º |
Torsional Stiffness x 106 | 84.00 in·lb/rad |
Rated Power at 100 rpm | 281.10 hp 209.60 kW |
Features
Features |
|
The SXC Type is the close coupled variation of the SX Type coupling. The SXC is similar to the SX coupling in that the disc packs are attached when the coupling is installed. In the close coupled units, the hubs are turned inward and are mounted inside the spacer. Note that with the hubs inside the spacer, the maximum bore allowed in the hub will be decreased. The SXC couplings can be used with one or both hubs turned outward to allow the coupling to accommodate different shaft separations.
