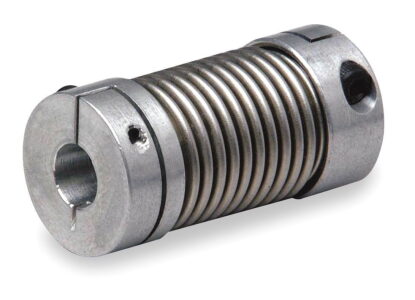

Lovejoy Bwc41 5/8X5/8 Coupling.
Lovejoy 68514476952 BWC Series Clamp Style Standard Bellow Coupling, 5/8 in Dia Bore, 1.26 in OD, 1.614 in OAL, 39.83 in-lb Torque, 15000 rpm Max.
Dimensional Data.
Bore A | 0.625 in |
Bore B | 0.625 in |
Overall Length | 1.614 in 41.000 mm |
Keyway Size | No Keyway |
Outside Diameter | 1.260 in 32.00 mm |
Min. Bore (Dimensions ID1/ID2) | 0.236 in 6 mm |
Max. Bore (Dimensions ID1/ID2) | 0.63 in 16 mm |
Length thru Bore | 0.551 in 14.00 mm |
Clamp Screw Size | M4 |
Cubic inches | 2.56239 in³ |
Performance Data
Max. Operating Temperature | 212.00 ºF |
Max. Speed | 15000 rpm |
Nominal Torque | 39.83 in·lb |
Angular Misalignment | 1.20 º |
Axial Misalignment | 0.0120 in |
Parallel Misalignment | 0.004 in |
Moment of Inertia | 0.3350 lb·in² |
Torsional Stiffness |
