Lovejoy AL050 Jaw Coupling Hub 1/2 In Bore n Kw

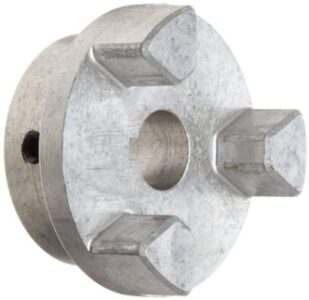

Lovejoy 68514410257 Size AL050 Jaw Coupling Hub, Aluminum, Inch, 0.5” Bore, 1.08” OD, 0.62” Length Through Bore, No Keyway.
Dimensional Data
Bore Size | 1/2 in |
Coupling Size | AL050 |
Thread (Dimension T) | 1/4-20 |
Keyway Size (W x D) | No Keyway |
Length thru Bore | 0.620 in15.75 mm |
Overall Length | 1.710 in43.43 mm |
Min. Bore (Dimensions ID1/ID2) | 0.250 in6 mm |
Max. Bore (Dimensions ID1/ID2) | 0.625 in16 mm |
Hub Length | 1.100 in27.94 mm |
Dimension G | 0.480 in12.19 mm |
Dimension HD | 1.08 in27.43 mm |
Dimension SL | .31 in7.87 mm |
Cubic inches | 1.28304 in³ |
Performance Data
Nominal Torque | 26.30 in·lb |
Max. Speed | 18000 rpm |
Moment of Inertia (Solid) WR2 | 0.020 lb·in² |
Rated HP at 100 rpm | 0.04 hp |
Rated HP at 1,200 rpm | 0.50 hp |
Rated HP at 1,800 rpm | 0.75 hp |
Rated HP at 3,600 rpm | 1.51 hp |
This Lovejoy jaw coupling hub replaces hubs on Lovejoy AL type jaw style flexible couplings and is made of aluminum for light weight and corrosion resistant applications.
This hub transfers shock and misalignment from the shaft to the center element of the coupling assembly for reduced wear on the shaft assembly.
Lovejoy jaw style couplings are suitable for use in various industrial power transmission applications such as compressors, blowers, pumps, conveyors, mixers, and gear boxes, among others.
Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other.
Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts.
Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another.
Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.
Lovejoy manufactures flexible couplings, universal joints, variable speed drives and various other transmission and mechanical power products.
Their products meet the standards of the International Organization for Standardization (ISO), the Deutsches Institut für Normung (DIN), the American National Standards Institute (ANSI), the American Gear Manufacturers Association (AGMA), the Society of Automotive Engineers (SAE) and Japanese Industrial Standards (JIS) for quality assurance.
The company, founded in 1900, is based in Downers Grove, IL.
