Lovejoy ADB4 Double Beam Coupling with Kw

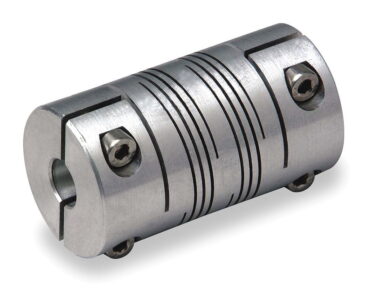

Lovejoy ADB4 68514476839 Double Beam Coupling, Aluminum, Inch, 1/4″ Bore A Diameter, 3/8″ Bore B Diameter, 0.752″ OD, 1.043″ Overall Coupling Length, 12 lb-in Nominal Torque, No Keyway, 10000 Max RPM
Dimensional Data
Bore A | 0.250 in |
Bore B | 0.375 in |
Overall Length | 1.043 in 26.50 mm |
Keyway Size | No Keyway |
Outside Diameter | 0.752 in 19.10 mm |
Min. Bore (Dimensions ID1/ID2) | 0.236 in 6 mm |
Max. Bore (Dimensions ID1/ID2) | 0.394 in 10.00 mm |
Length thru Bore | 0.256 in 6.50 mm |
Clamp Screw Size | M2.5 |
Cubic inches | 0.58982 in³ |
Performance Data
Max. Operating Temperature | 200.00 ºF |
Max. Speed | 10000 rpm |
Nominal Torque | 12.00 in·lb |
Max. Angular Misalignment | 7.00 º |
Axial Misalignment | ± 0.010 in |
Parallel Misalignment | 0.010 in |
Moment of Inertia | 0.0030 lb·in² |
Torsional Stiffness | 4460.00 in·lb/rad |
