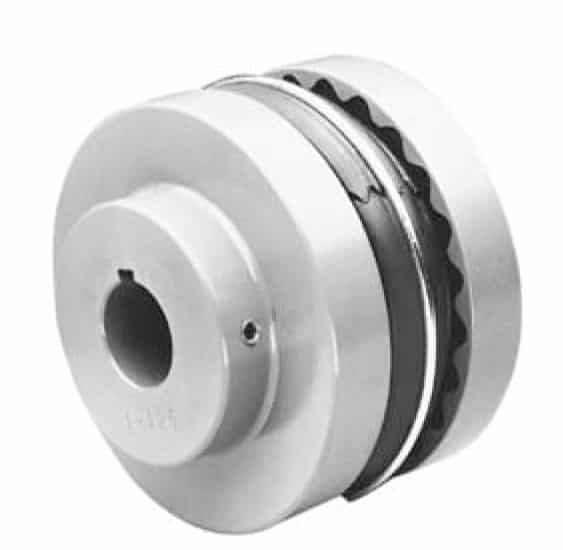

Lovejoy 9S Flange 1 3/4 In Bore w 3/8 x 3/16 In Kw

Name: Lovejoy 9S Flange 1 3/4 In Bore w 3/8 x 3/16 In Kw - Twin Spring Coupling - Premium Power transmission couplings
SKU: B002E7JPHQ
Price: 86.60 USD
Availability: InStock

$86.60

Lovejoy 9S Flange 1 3/4 In Bore w 3/8 x 3/16 In Kw.

Specifications.

Description	9S-FLNG-1-3/4-3/8X3/16KW.
Coupling Size	9S.
Type	Coupling Flange.
Material	Cast Iron
Color	Gray.
Bore Type	Finished Bore.
Coupling Type	S-Flex.
Weight	7.33 lb.

All standard finished bore keyway flanges have 2 set screws at 90°.
Sizes 13, 14 and 16 RSB flanges are suitable for reboring and have two set screws at 90°.
Sizes 5-12 RSB flanges have no set screws.
Metric Bore / Keyway per DIN specifications.
Spacing between shafts should be greater than 1/8 inch and less than OAL minus the sum of the two bore dimensions.

SKU: B002E7JPHQ Categories: Couplings, Flexible Couplings, Industrial, Multi-Flex Tags: Agriculture, coupling, elastomeric coupling, flange, Industrial, lovejoy, mining, s-flex Brand: Lovejoy

Description

Lovejoy 9S Flange 1 3/4 In Bore w 3/8 x 3/16 In Kw

Lovejoy 68514436161 Cast Iron 9S Flange, 1-3/4″ Bore, 6.35″ OD, 3/8″ x 3/16″ Keyway, 1800 Inch Pounds Item Torque.

Dimensional Data.

Bore Size	1 3/4 in.
Thread (Dimension T)	1/2-13.
Keyway Size (W x D)	3/8 x 3/16 in.
Outside Diameter	6.350 in 161.29 mm.
Max. Bore (Dimension ID)	2.375 in.
Dimension FL	1.030 in 26.16 mm.
Dimension HD	3.630 in 92.20 mm.
Dimension L	2.410 in 61.21 mm.
Dimension P	0.780 in 19.81 mm.
Dimension SL	0.410 in 10.41 mm.
Cubic inches	97.17723 in³.

Performance Data.

Nominal Torque (with EPDM Sleeve)	1800 in·lb.
Max. Speed	3750.00 rpm.
Torsional Stiffness	6875.00 in·lb/rad.
Rated HP at 100 rpm	2.90 hp.
Rated HP at 1,200 rpm	34.00 hp
Rated HP at 1,800 rpm	51.00 hp..
Rated HP at 3,600 rpm	103.00 hp.
