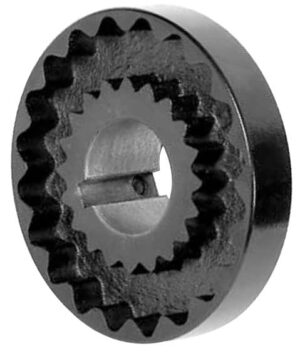

Lovejoy 5S Flange 1 In Bore w 1/4 x 1/8 In Keyway
Lovejoy 68514436073 Cast Iron 5S Flange, 1″ Bore, 3.25″ OD, 1/4″ x 1/8″ Keyway, 240 Inch Pounds Item Torque.
Dimensional Data
Bore Size | 1 in |
Thread (Dimension T) | 1/4-20 |
Keyway Size (W x D) | 1/4 x 1/8 in |
Outside Diameter | 3.250 in 82.55 mm |
Max. Bore (Dimension ID) | 1.188 in |
Dimension FL | 0.590 in 14.99 mm |
Dimension HD | 1.880 in 47.75 mm |
Dimension L | 1.34 in 34.04 mm |
Dimension P | 0.450 in 11.43 mm |
Dimension SL | 0.290 in 7.37 mm |
Cubic inches | 14.15375 in³ |
Performance Data
Nominal Torque (with EPDM Sleeve) | 240 in·lb |
Max. Speed | 7600.00 rpm |
Torsional Stiffness | 916.00 in·lb/rad |
Rated HP at 100 rpm | 0.40 hp |
Rated HP at 1,200 rpm | 4.60 hp |
Rated HP at 1,800 rpm | 6.90 hp |
Rated HP at 3,600 rpm | 13.70 hp |
