This Lovejoy S-Flex coupling flange is for use on specific flexible coupling assemblies in the Lovejoy S-Flex series and is made of strong metal alloy for durability and corrosion resistance. It transfers shock and misalignment to the center element of the coupling assembly for reduced wear on the shaft assembly, and its teeth help to distribute torsional load across the sleeve to reduce wear and extend service life. This S-Flex coupling flange flexes up to one degree to compensate for angular misalignment of coupled shafts. Lovejoy S-Flex series flexible couplings are suitable for applications that require torsional flexibility and the capacity to withstand shock loads and vibration, including blowers, compressors, conveyors, dredges, feeders, generators, mills, and presses, among others.Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other. Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another. Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others.Lovejoy manufactures flexible couplings, universal joints, variable speed drives and various other transmission and mechanical power products. Their products meet the standards of the International Organization for Standardization (ISO), the Deutsches Institut für Normung (DIN), the American National Standards Institute (ANSI), the American Gear Manufacturers Association (AGMA), the Society of Automotive Engineers (SAE) and Japanese Industrial Standards (JIS) for quality assurance. The company, founded in 1900, is based in Downers Grove, IL.

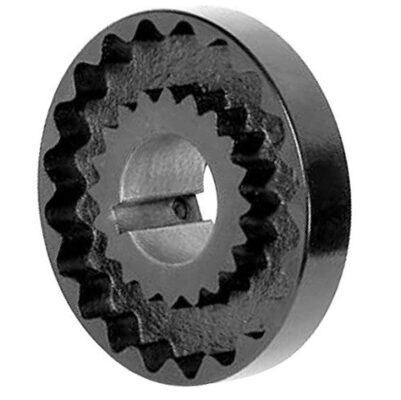

Lovejoy 36078 Size 6J S-Flex Coupling Flange, Cast Iron, Inch, 0.625" Bore, 4" OD, 1.31" Hub Length, 450 in-lbs Nominal Torque, 0.188" x 0.094" Keyway
SKU: B003LVYOXO
Category: Spider
Description
Additional information
Asin | B003LVYOXO |
---|---|
Dimensions | |
Weight | |
Manufacturer |
Reviews (0)
Be the first to review “Lovejoy 36078 Size 6J S-Flex Coupling Flange, Cast Iron, Inch, 0.625" Bore, 4" OD, 1.31" Hub Length, 450 in-lbs Nominal Torque, 0.188" x 0.094" Keyway” Cancel reply
