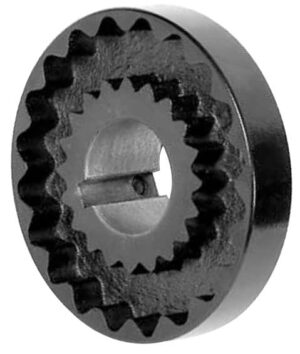

Lovejoy 12S Flange 2 3/8 In Bore w 5/8 x 5/16 In Keyway
Lovejoy 68514436203 Cast Iron 12S Flange, 2 3/8″ Bore, 10″ OD, 5/8″ x 5/16″ Keyway, 7200 Inch Pounds Item Torque.
Dimensional Data
Bore Size | 2 3/8 in |
Thread (Dimension T) | 1/2-13 |
Keyway Size (W x D) | 5/8 x 5/16 in |
Outside Diameter | 10.000 in 254.00 mm |
Max. Bore (Dimension ID) | 3.875 in |
Dimension FL | 1.690 in 42.93 mm |
Dimension HD | 5.750 in 146.05 mm |
Dimension L | 4.000 in 101.60 mm |
Dimension P | 1.280 in 32.51 mm |
Cubic inches | 400.00000 in³ |
Performance Data
Nominal Torque (with EPDM Sleeve) | 7200 in·lb |
Max. Speed | 2800.00 rpm |
Torsional Stiffness | 27500.00 in·lb/rad |
Rated HP at 100 rpm | 11.40 hp |
Rated HP at 1,200 rpm | 137.00 hp |
Rated HP at 1,800 rpm | 206.00 hp |
