Lovejoy 1110 X 3-1/8 HUB KW.

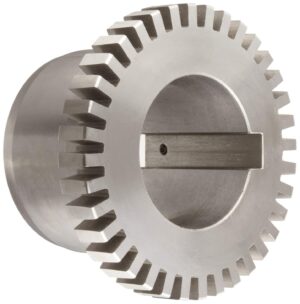

Lovejoy 69790405533 1110 Grid Coupling Hub, Inch, 3.1220/3.1235″ Bore, 10.19″ Overall Coupling Length, 82500 in-lbs Max Torque, 0.75″ x 0.375″ Keyway, with Puller Hole.
Dimensional Data
Bore Size | 3 1/8 in |
Set Screw Style Coupling Size (Dimension T) | No Setscrew |
Keyway Size (W x D) | 3/4 x 3/8 in |
Length thru Bore | 5.00 in 127.00 mm |
Overall Length | 10.190 in 258.70 mm |
Outside Diameter (Horiontal Style Cover) | 10.630 in 270.00 mm |
Outside Diameter (Vertical Style Cover) | 11.250 in 285.80 mm |
Min. Bore (Dimensions ID1/ID2) | 1.625 in 41.00 mm |
Max. Bore (Dimensions ID1/ID2) | 4.500 in 117.00 mm |
Dimension FD | 8.500 in 215.90 mm |
Dimension FL | 0.630 in 16.00 mm |
Dimension HD | 6.310 in 160.30 mm |
Dimension G1 | 0.177 in 4.50 mm |
Dimension L (Horizontal Style Cover) | 6.360 in161.54 mm |
Dimension L (Vertical Style Cover) | 2.500 in 63.50 mm |
Dimension R | 4.880 in 123.95 mm |
Distance between Shaft Ends (Dimension G) – Normal Gap | 0.177 in 4.50 mm |
Cubic inches | 199.08050 in³ |
Performance Data
Nominal Torque | 82500.00 in·lb |
Max. Speed (Horizontal Style Cover) | 2250.00 rpm |
Max. Speed (Vertical Style Cover) | 3000.00 rpm |
Max. Parallel Misalignment at Installation (Dimension P) | 0.0100 in |
Max. Parallel Misalignment during Operation (Dimension P) | 0.020 in |
Max. Angular Misalignment at Installation (X-Y) | 0.009 in |
Max. Angular Misalignment during Operation (X-Y) | 0.035 in |
Coupling Part Numbers
Lovejoy® Grid Coupling Size | 1110 |
Falk™ Steelflex® Horizontal Cover Style Coupling Part Number | 1110T10 |
Morse® / Browning® Grid-Flex Horizontal Cover Style Coupling Part Number | GF2110H |
Dodge® Grid-Lign® Horizontal Cover Style Coupling Part Number | 1110T10 |
Kop-Flex® / Kop-Grid® Horizontal Cover Style Coupling Part Number | 1110H |
Falk™ Steelflex® Vertical Cover Style Coupling Part Number | 1110T20 |
Morse® / Browning® Grid-Flex Vertical Cover Style Coupling Part Number | GF2110V |
Dodge® Grid-Lign® Vertical Cover Style Coupling Part Number | 1110T20 |
Kop-Flex® / Kop-Grid® Vertical Cover Style Coupling Part Number | 1110V |
This Lovejoy 1000 series grid coupling assembly hub replaces existing hubs on Lovejoy 1000 series style grid couplings and is made of stamped steel for strength and durability. Grid couplings, a type of flexible coupling, use a flexible grid that fits into slotted hubs to transmit torque and offset rotational misalignment.
The serpentine shape of the grid absorbs impact energy, reduces vibration, and transmits torque from one hub to the other through the grid. This hub is suitable for both horizontal and vertical-style coupling designs and uses imperial unit measurements for industry consistency and interchangeability. It has an operating temperature range of -40 to 250 degrees F (-40 to 121 degrees C). Together with the other component parts of the coupling assembly, the grid supports constant angular misalignments up to 0.25 degrees.
It meets International Organization for Standardization (ISO) 9001 for quality assurance. Lovejoy 1000 series grid couplings are suitable for use in various industrial power transmission applications such as pumps, mixers, crushers, fans, compressors, conveyors, pulverizers, and other equipment found in the steel, pulp, paper, mining, aggregate, and construction industries. Flexible couplings are used to link two rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from one shaft to the other.
Most flexible couplings consist of two hubs and a middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the two shafts. Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from one shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from one type of misalignment to another.
Flexible couplings are used in a broad range of applications, such as in motor vehicles, conveyors, escalators, agricultural, forestry and mining equipment, aeronautics, robotics and space exploration, among others. Lovejoy manufactures flexible couplings, universal joints, variable speed drives and various other transmission and mechanical power products.
Their products meet the standards of the International Organization for Standardization (ISO), the Deutsches Institut für Normung (DIN), the American National Standards Institute (ANSI), the American Gear Manufacturers Association (AGMA), the Society of Automotive Engineers (SAE) and Japanese Industrial Standards (JIS) for quality assurance. The company, founded in 1900, is based in Downers Grove, IL.
