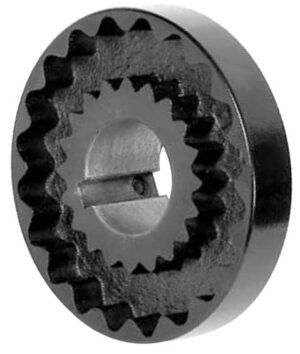

Lovejoy 10S Flange 1 11/16 In Bore w 3/8 x 3/16 In Kw
Lovejoy 68514436176 Cast Iron 10S Flange, 1 11/16″ Bore, 7.5″ OD, 3/8″ x 3/16″ Keyway, 2875 Inch Pounds Item Torque.
Dimensional Data
Bore Size | 1 11/16 in |
Thread (Dimension T) | 1/2-13 |
Keyway Size (W x D) | 3/8 x 3/16 in |
Outside Diameter | 7.500 in 190.50 mm |
Max. Bore (Dimension ID) | 2.750 in |
Dimension FL | 1.220 in 30.99 mm |
Dimension HD | 4.380 in 111.25 mm |
Dimension L | 2.700 in 68.58 mm |
Dimension P | 0.810 in 20.57 mm |
Dimension SL | 0.410 in 10.41 mm |
Cubic inches | 151.87500 in³ |
Performance Data
Nominal Torque (with EPDM Sleeve) | 2875 in·lb |
Max. Speed | 3600.00 rpm |
Torsional Stiffness | 10980.00 in·lb/rad |
Rated HP at 100 rpm | 4.60 hp |
Rated HP at 1,200 rpm | 55.00 hp |
Rated HP at 1,800 rpm | 82.00 hp |
Rated HP at 3,600 rpm | 164.00 hp |
