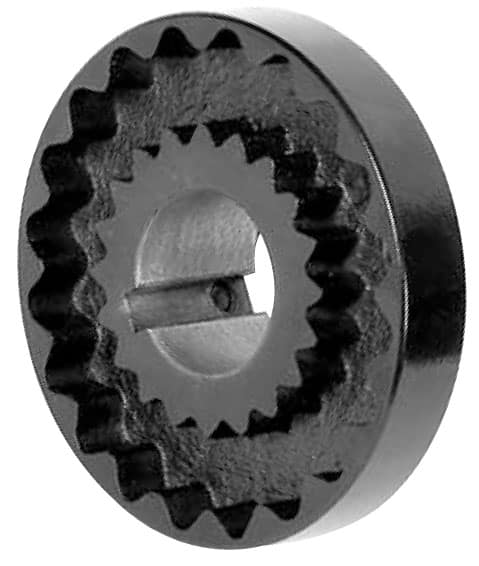

Lovejoy 10S Flange 1 1/4 In Bore w 1/4 x 1/8 In Kw
Lovejoy 68514436171 Cast Iron 10S Flange, 1-1/4″ Bore, 7.5″ OD, 1/4″ x 1/8″ Keyway, 2875 Inch Pounds Item Torque.
Dimensional Data
Bore Size | 1 1/4 in |
Thread (Dimension T) | 1/2-13 |
Keyway Size (W x D) | 1/4 x 1/8 in |
Outside Diameter | 7.500 in 190.50 mm |
Max. Bore (Dimension ID) | 2.750 in |
Dimension FL | 1.220 in 30.99 mm |
Dimension HD | 4.380 in 111.25 mm |
Dimension L | 2.700 in 68.58 mm |
Dimension P | 0.810 in 20.57 mm |
Dimension SL | 0.410 in 10.41 mm |
Cubic inches | 151.87500 in³ |
