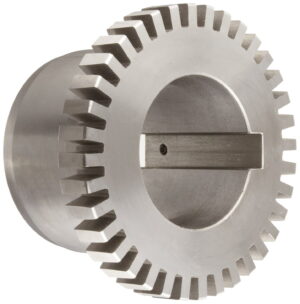

Lovejoy 1090 Grid Coupling Hub 55 mm Bore w 16 mm x 4.3 mm Kw

Bore Size	55.00 mm
Lovejoy® Grid Coupling Size	1090
Set Screw Style Coupling Size (Dimension T)	5/16-18
Set Screw Style Coupling Location Size (Dimension SL)	1.030 in 26.16 mm
Keyway Size (W x D)	16 x 4.3 mm
Height	4.880 in
Width	4.880 in
Length thru Bore	3.880 in 98.55 mm
Overall Length	7.880 in 200 mm
Outside Diameter (Horiontal Style Cover)	8.390 in 213.00 mm
Outside Diameter (Vertical Style Cover)	7.880 in 200.20 mm
Min. Bore (Dimensions ID1/ID2)	1.062 in 27.00 mm
Max. Bore (Dimensions ID1/ID2)	3.500 in 89.00 mm
Dimension FD	5.880 in 149.20 mm
Dimension FL	0.500 in 12.70 mm
Dimension HD	4.880 in 123.70 mm
Dimension G1	0.118 in 3.00 mm
Dimension L (Horizontal Style Cover)	4.800 in 121.92 mm
Dimension L (Vertical Style Cover)	1.860 in 47.24 mm
Max. Parallel Misalignment at Installation (Dimension P)	0.0080 in
Max. Parallel Misalignment during Operation (Dimension P)	0.016 in
Dimension R	3.750 in 95.25 mm
Dimension SL	1.030 in 26.16 mm
Distance between Shaft Ends (Dimension G) – Normal Gap	0.118 in 3.00 mm
Cubic inches	92.39987 in³

Nominal Torque	33000.00 in·lb 3728.00 N·m
Max. Speed (Horizontal Style Cover)	3600.00 rpm
Max. Speed (Vertical Style Cover)	4000.00 rpm
Max. Angular Misalignment at Installation (X-Y)	0.007 in
Max. Angular Misalignment during Operation (X-Y)	0.028 in

Falk™ Steelflex® Horizontal Cover Style Coupling Part Number	1090T10
Morse® / Browning® Grid-Flex Horizontal Cover Style Coupling Part Number	GF2090H
Dodge® Grid-Lign® Horizontal Cover Style Coupling Part Number	1090T10
Kop-Flex® / Kop-Grid® Horizontal Cover Style Coupling Part Number	1090H
Falk™ Steelflex® Vertical Cover Style Coupling Part Number	1090T20
Morse® / Browning® Grid-Flex Vertical Cover Style Coupling Part Number	GF2090V
Dodge® Grid-Lign® Vertical Cover Style Coupling Part Number	1090T20
Kop-Flex® / Kop-Grid® Vertical Cover Style Coupling Part Number	1090V

High tensile, shot-peened alloy steel grid springs and precision machined hubs ensure superior coupling performance and long life.
Lovejoy’s grid couplings with tapered grids are designed to be interchangeable with other industry standard grid couplings with both horizontal and vertical grid covers.
Lovejoy grid couplings are designed for ease of installation and maintenance reducing labor and downtime costs.
The torsional flexibility and resilience of Lovejoy grid couplings helps reduce vibration and cushions shock and impact loads.
Cover fasteners can be provided in either Inch or Metric sizes.
Excellent for use in applications where the equipment is close coupled or spaced apart requiring a spacer style coupling arrangement.
Stock spacer designs are available or requests for custom spacer lengths can be addressed by Lovejoy engineering.
