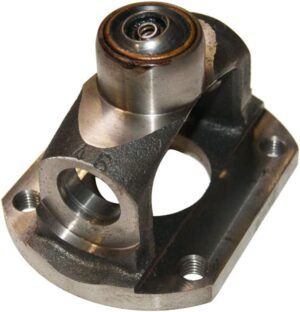

GMB 260-1628 Universal Joint Centering Yoke

Weasler 800-4428 Yoke

44 Series Setscrew Yoke

44 series yoke with round with keyway bore and setscrew connection

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flange yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.

• Fits Series 44N: U-Joint Cap Size: 1-5/16” / 1.313” Cap to Cap: 4” / 4.000”.
• 2660800-4432, 800 4432, 800-4432, 8004432, 971-8004432, 9718004432, PM800-4432
• 44N Series
• PTO

Weasler 10001448 Yoke

14 series yoke and shaft, 1 x 1 1/8 square

Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube shapes.

Weasler 102-3506 Yoke

35 series yoke with 1 3/8-6 spline bore and quick disconnect connection

PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2″ 8-spline and 1 3/4″ 6-spline options are available. Lawn & Turf tractor yokes are offered in 1″ 10-spline and 1″ 15-spline.
