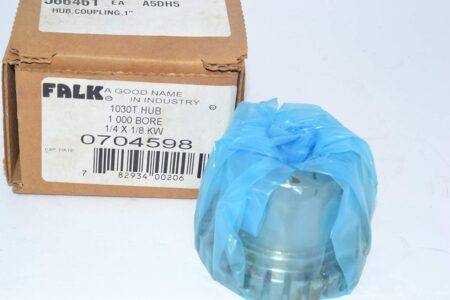

Falk Rexnord 0704598 1030 Grid Coupling Hub 1 In Bore w 1/4 x 1/8 In Kw.
Falk T10_T20 Series Standard Hubs size(s) 1030T with a 1.940-inch outside barrel diameter and 1.88-inch length for grid couplings.
Technical Specifications
| Coupling Size: | 1030T | Coupling Type: | Grid |
| Hub Barrel Outside Diameter (in): | 1.94 in | Hub Bore Fit: | Clearance |
| Hub Length through Bore (in): | 1.88 in | Hub Material: | Steel |
| Hub Set Screw Axial Location (in): | 1.54 in | Hub Straight Bore Diameter [Max] (in): | 1.001 in |
| Hub Straight Bore Diameter [Min] (in): | 1 in | Hub Straight Bore Diameter [Nom] (in): | 1 in |
| Hub Style: | Bored | Hub Type: | T-Hub |
| Keyway ANSI Standard: | True | Keyway Depth (in): | 0.125 in |
| Keyway Fit: | Commercial | Keyway Width (in): | 0.25 in |
| Number of Keyways: | 1 | Number of Set Screws: | 1 |
| Product: | T10_T20 Series Standard Bore Hubs | Series: | Hubs |
General Specifications
| UPC: | 782934002069 | Weight: | 1.61 LB |
| Packaged Length: | 3.50 IN | Packaged Width: | 3.50 IN |
| Packaged Height: | 6.00 IN | HTC: | 8483908010 |
| Country of Origin: | China |
