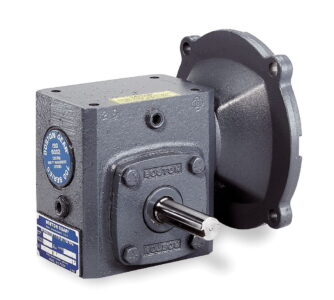

Boston Gear F721-25-B5-G SPECIFICATIONS
Center Distance 2.0600 in
Housing Dimensions 6 x 3.81 x 6.38 in
Housing Height 6.38 in
Housing Length 6.00 in
Housing Material Cast Iron
Housing Width 3.81 in
Input Size 0.6250 in – 5/8 in
Input Type C-Face Quill
Manufacturer Reducer Size 721
Manufacturer UPC Number 781711519660
Maximum Input Horsepower 1.160 hp @ 1750 rpm, 1.160 hp @ 1750 rpm
Maximum Output RPM 70.000 @ 1750 rpm input
Maximum Output Torque 975 in-lbs @ 100 rpm
Mounting Type No Base
NEMA / IEC Frame Size 56C, 56C
Output Direction Left Hand, Left Hand
Output Size 1.0000 in – 1 in
Output Type Solid
Overhung Load Capacity 700 lb
Ratio 25:1
Reduction Single, Single
Series 700
Standards Met AGMA
Weight 27.40 lbs
