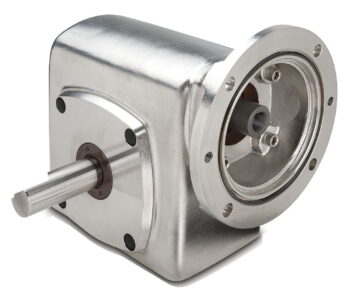

BOSTON GEAR F724-10-B7-G Speed Reducer C-Face 140TC/180C 10:1
Boston Gear/Altra Industrial Motion – F724-10-B7-G – Speed Reducer: 175 Nominal Output RPM, 140TC/180C, 10:1, 2 hp Max. Input HP, C-Face
Item: Speed Reducer
Nominal Ratio: 10:1
Input RPM: 1750 rpm
Nominal Output RPM: 175 RPM
Standards: AGMA; ISO 9001:2015
Bearings: Tapered Roller
Housing Material: Cast Iron
Worm Gear Material: Bronze
Mounting: Any Position
Pinion Material: Hardened Steel
Gear Material: Hardened and Ground Steel
Base: Optional
Output Torque @ 1/40 HP 3600 in.-lb.
Duty: Standard
Output Torque @ 3 HP 640 in-lb
Speed Reducer Type: C-Face
Solid/Hollow Output Shaft: Solid
Finish: Powdered Epoxy Paint
Lubrication: Klubersynth UH1 6-460
Gear Type: Worm
Max. Output Torque: 640 in-lb
Rotation: CW/CCW
Single/Double Output/Universal: Single Output
Reducer Model No.F724-10-B7-G
Seal Type: Double Lip
Shaft Orientation: Right Angle
Worm Center Distance: 2.38 in
Output Torque @ 2 HP480 in-lb
Overhung Load: 900 lb
Number of Stages 1
Frame 140TC/180C
Max. Input HP 2 hp
Nominal Output rpm 175 rpm
Bearing Type Tapered Roller
Gear Ratio 10:1
Maximum Output Torque 640 in-lb
Mounting Orientation Any Angle
Housing Material Finish Powder Coated Epoxy Paint
Maximum Output Speed 175 RPM
Overhung Load Capacity 900 lb
Input Connection Type C-Face
Maximum Input Horsepower 2 hp
Maximum Input Speed 1,750 RPM
Base to Center 2.5 in
Motor Frame Designation 140TC/180C
Output Shaft Type Round
