Baldor Reliance L1406T

Name: Baldor Reliance L1406T - Twin Spring Coupling - Universal joint, jaw coupling and elastomeric coupling replacements
SKU: B007ZQQRAE
Price: 1031.30 USD
Availability: InStock

Performance at 115 V, 60 Hz, 3 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT

No-Load Current0 A

Line-Line Res. @ 25° C0.178 Ohms A Ph / 0.907 Ohms B Ph

Temp. Rise @ Rated Load56° C

Temp. Rise @ S.F. Load69° C

Start ConfigurationDOL

Break-Down Torque10.5 LB-FT

Pull-Up Torque7.5 LB-FT

Locked-Rotor Torque8.3 LB-FT

Starting Current148 A

Load Characteristics

Rated Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power Factor	31.0	66.0	81.0	87.0	90.0	89.0	88.0	89.0
Efficiency	0.0	58.1	70.7	74.6	75.2	73.9	70.9	74.4
Speed (RPM)	3,588	3,557	3,522	3,484	3,439	3,385	3,314	3,407
Line Amps	10.70	13.20	17.40	22.80	29.00	36.40	45.40	33.40

SKU: B007ZQQRAE Categories: Electric Motors, Motors Tags: AC Motor, baldor, GP Motor

Description

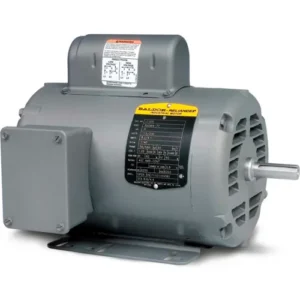

Baldor Reliance L1406T

Catalog Number L1406T

Enclosure OPEN

Frame 182T

Frame Material Steel

Frequency 60.00 Hz

Motor Letter Type Cap Start, Induction Run

Output @ Frequency 3.000 HP @ 60 HZ

Phase1

Synchronous Speed @ Frequency 3600 RPM @ 60 HZ

Voltage @ Frequency 230.0 V @ 60 HZ
115.0 V @ 60 HZ

XP Class and Group None

XP Division Not Applicable

Agency Approvals CSA
UR

Ambient Temperature 40 °C

Auxillary Box No Auxillary Box

Auxillary Box Lead Termination None

Base Indicator Rigid

Bearing Grease Type Polyrex EM (-20F +300F)

Blower None

Current @ Voltage 14.700 A @ 208.0 V
28.000 A @ 115.0 V
14.000 A @ 230.0 V

Design Code L

Drip Cover No Drip Cover

Duty Rating CONT

Efficiency @ 100% Load 78.0 %

Electrically Isolated Bearing Not Electrically Isolated

Feedback Device NO FEEDBACK

High Voltage Full Load Amps 14.0 a

Front Face Code Standard

Front Shaft Indicator None

Heater Indicator No Heater

Insulation Class F

Inverter Code Not Inverter

KVA Code G

Lifting Lugs No Lifting Lugs

Locked Bearing Indicator No Locked Bearing

Motor Lead Exit Ko Box

Motor Lead Termination Flying Leads

Motor Lead Quantity/Wire Size 4 @ 14 AWG, A PH

Motor Type 3628L

Mounting Arrangement F1

Number of Poles 2

Overall Length 15.00 IN

Power Factor 88

Product Family General Purpose

Pulley End Bearing Type Ball

Pulley Face Code Standard

Pulley Shaft Indicator Standard

Rodent Screen None

Service Factor 1.15

Shaft Diameter 1.125 IN

Shaft Extension Location Pulley End

Shaft Ground Indicator No Shaft Grounding

Shaft Rotation Reversible

Shaft Slinger Indicator No Slinger

Speed 3450 rpm

Speed Code Single Speed

Motor Standards NEMA

Starting Method Direct on line

Thermal Device – Bearing None

Thermal Device – Winding None

Vibration Sensor Indicator No Vibration Sensor

Winding Thermal 1 None

Winding Thermal 2 None

Baldor Reliance L1406T

Industrial Motors

Additional information

Asin	B000ANEU5I

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Baldor Reliance L1406T” Cancel reply
